Reseller Starter Guide

Welcome to Eagle Eye Networks, the number one in cloud based video surveillance worldwide. Here are a few tips and guides to help you get started.

Accounts

From your Reseller Dashboard you have the ability to create SubAccounts as well as Logins for your Technicians.

Sub Accounts

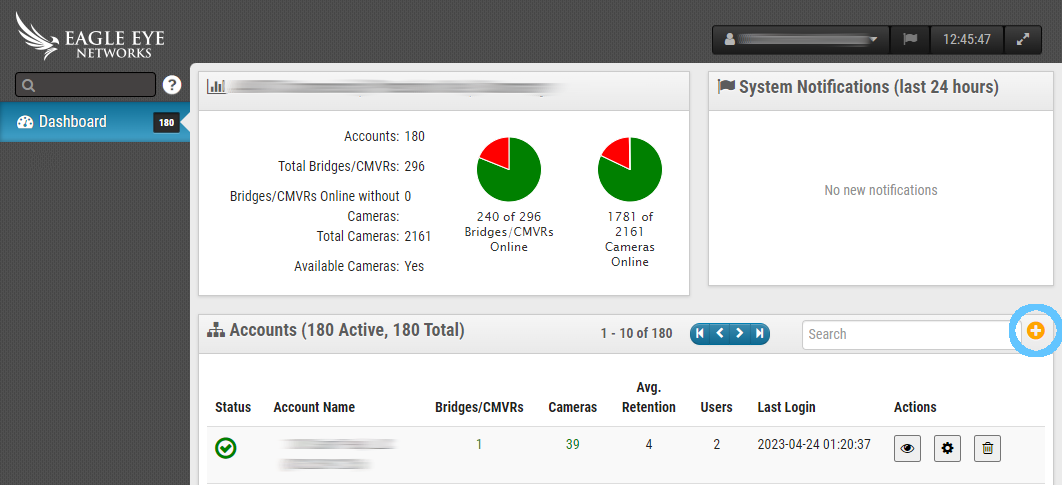

Select the Dashboard tab.

If a Company is going to have multiple locations, continue adding devices to the same Sub Account. User Permissions can be limited to view only certain devices within an account.

An email can only be used on one account within the Eagle Eye system.

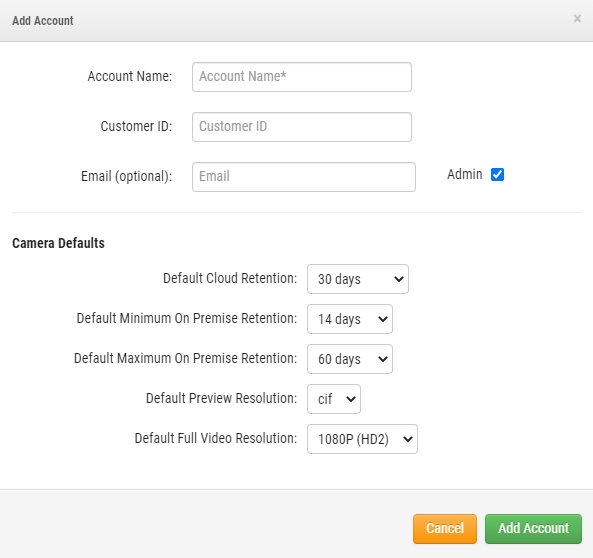

From this menu you can set the default settings for any new cameras that will be added to the system.

The Customer ID is an optional field which can be filled out for internal organizational purposes but is not necessary.

Users

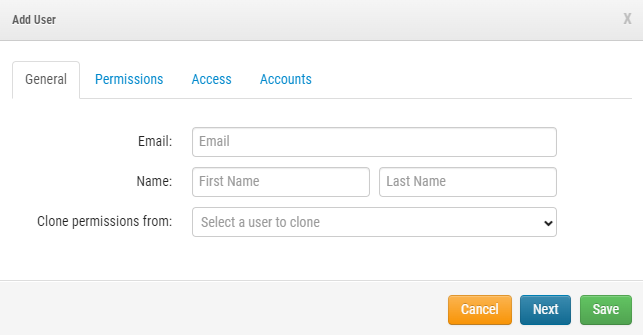

To create a login for a Technician first ensure you are on the Reseller Dashboard where it lists your company’s active accounts.

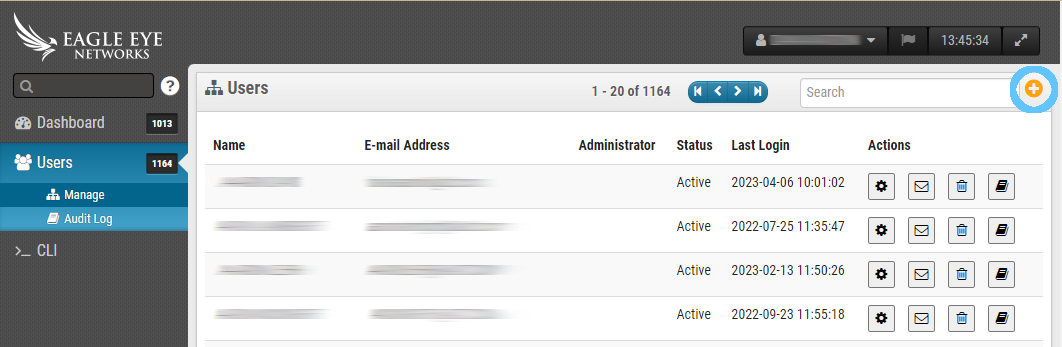

Select the Users tab.

Click the Yellow Plus.

The Permissions tab limits what your technician can do. Most Technicians will need all permissions to set up SubAccounts correctly (Administrator).

This guide has a more comprehensive explanation of what each permission entails: Permissions Information.

Once the User is created they will get a Validation Email which they will need to open within 24 hours to set a password for their account.

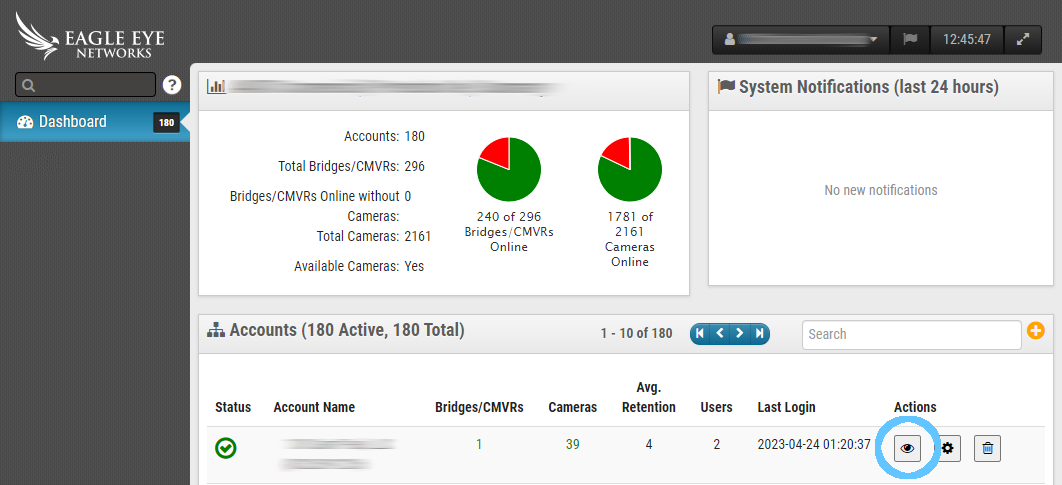

The process to create a login for your customers is the same process. Ensure you are logged into the SubAccount before creating the user. To login to the SubAccount click the Eye (pictured below) icon then follow the above steps for creating a user.

Our systems are set up as DHCP by default which makes installation a breeze. If the customer requires the system to be set up statically it is easy to make that change as well. Here is a standard walkthrough of the installation and account setup processes.

Physical Installation Walkthrough

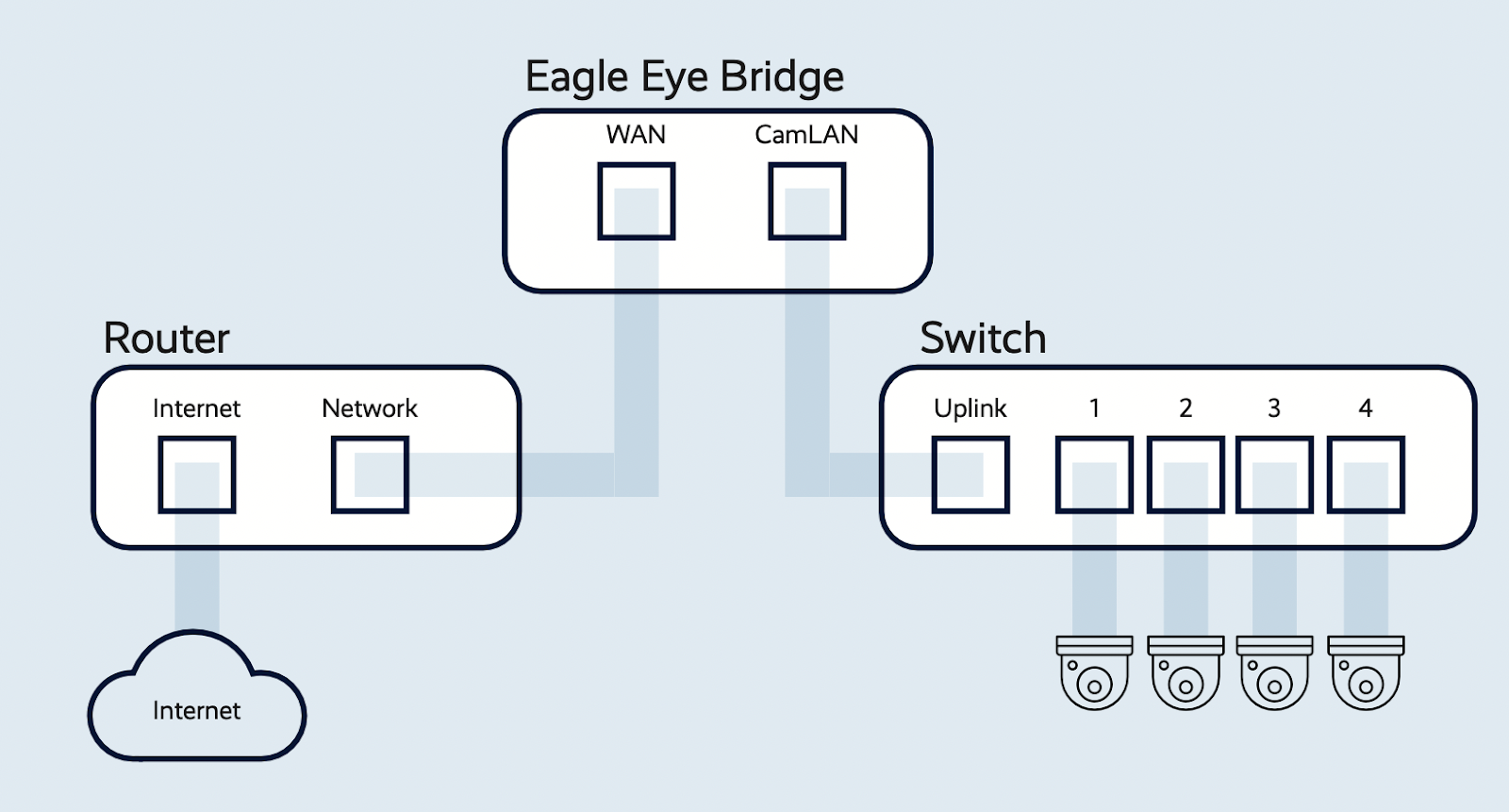

Connect the equipment according to the image above. If the system will be utilizing third party devices some adjustments will need to be made.

The Switch

• Ensure IGMP Snooping is disabled

• Multicast must be enabled

• If the system is utilizing multiple switches it's best to utilize a Star configuration:


• Star - One switch on CamLAN, other switches plugged into main switch


A Daisy Chain configuration is not recommended.

The Network

• The local IT for the business must ensure all the ports on our Firewall Guide are open, not filtered, to ensure the system is able to communicate fully.

• If the cameras are on the local network rather than the CamLAN please ensure that all the cameras are on the same IP scheme as the bridge

The Sub Account must be created from the Reseller Dashboard in the Accounts section. From the Reseller Dashboard the Technician will click the Eye icon next to the SubAccount to log in to it.

Step One

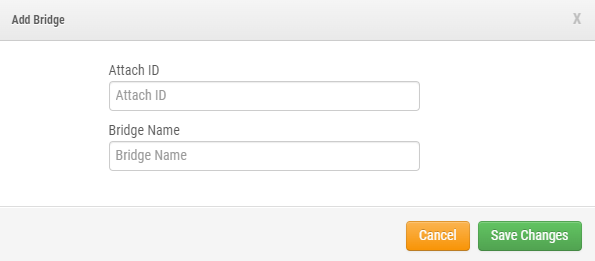

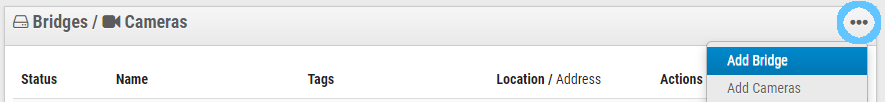

Add the Bridge to the account via the Ellipsis icon on the Bridges/Cameras header from the Dashboard.

Log in with the default credentials [Username: admin Password: Last 5 of the bridge serial number] and the Attach ID will be under System Info.

Some customers may want their system set up statically. All you would need to do is set the bridge statically. Please follow this guide to set the bridge to a static address. Setting The Bridge To A Static IP

Step Two

Once the Bridge is added it will detect any cameras on the same network as long as ONVIF is enabled. Some units have ports for cameras but most systems will require an external Switch. Ensure the Switch is plugged into the CamLan port on the bridge.

It is vital to system operation that the WAN and CamLAN networks do not intersect in any way.

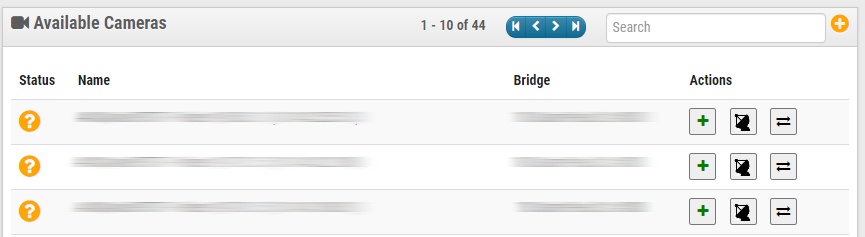

The Cameras will populate under Available Cameras at the bottom of the Dashboard.

If a camera shows as “unsupported” then we currently do not support that model of camera, however most cameras we can make compatible with our system.

Click the Envelope icon next to the camera to request support and make sure to leave the camera turned on and plugged into the bridge so our engineers can work on creating a support file for it. You will receive updates via email on the status of your request.

If the camera is on our Camera Compatibility List please contact support to ensure the bridge is up-to-date.

The camera username and password is necessary for the system to log in to the camera; the camera login should be the same as the ONVIF credentials. If the camera has a section to create an ONVIF profile this must be done or the bridge will be unable to discover the device.

The Eagle Eye Dashboard does not support special characters (i.e. !,#,$) however if the camera requires one use the hyphen “-” or the underscore “_”.

Here are a couple configuration guides for common brands that we support:

Hikvision Configuration Guide

Axis Camera Configuration Guide

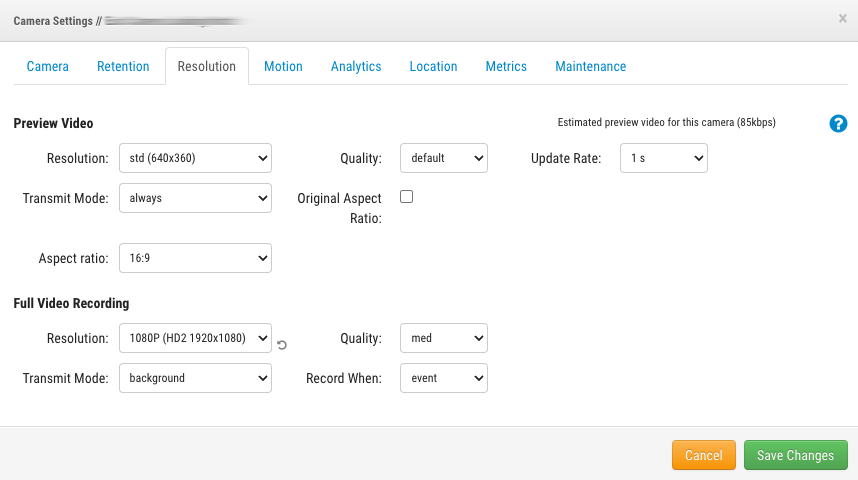

Once all cameras are added at the resolution desired it is important to set the "Default Transmit Bandwidth" of the bridge equal to the amount of megapixels for the cameras that are attached.

Ex.)

A bridge has 5 cameras set to a Full Video Recording resolution of 1080P HD2. This is equivalent to 10 megapixels.

Step Three

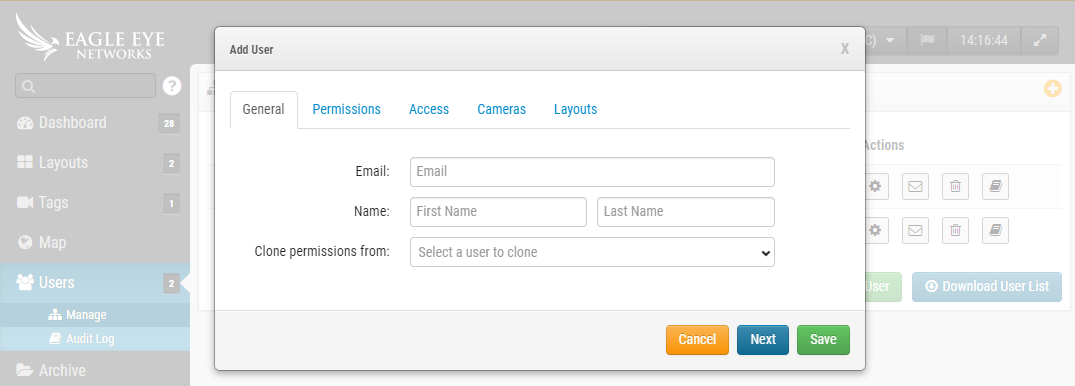

Create a login for the Customer. Within the Users tab of the SubAccount create a User with the Customer’s email address and set their permissions as necessary. (Refer to the Permissions document for more information, Permissions Information.) Ensure they open the Validation Email within 24hrs to set a password or it will expire.

Tips and Tricks:

Some cameras only broadcast ONVIF when first powered on, reboot if they disappear.

Multilens cameras will show as a normal camera. Once you add the camera more “cameras” will populate in Available Cameras with the same IP address. Once added you will be able to view the lenses after adding to a layout. You can also add them in the Views tab in the camera settings. See this link for more information on how to make a layout: Layouts

In the bridge settings set the Default Transmit Bandwidth to a fixed value equal to the amount of Megapixels on the bridge.

Synopsis

1. Create the SubAccount from the Reseller Dashboard.

2. Add the Bridge to the SubAccount.

3. Add the Cameras to the SubAccount.

4. Create the User profile for the customer.

Support

If you need technical assistance please contact our support team.

We offer global 24/7 support and are happy to help.

Our Tech Receptionists will set up a ticket for our Technicians so they will have the necessary information to look into the issue.

We will need the technician’s login Email and Support Pin as well as the Bridge Serial number to submit the ticket.

The Support Pin is a unique 6 digit code found in the My Profile section of the account. It allows our technicians to access the account and is necessary for verification. We cannot assist without verifying this pin number for account security.
