Microsoft Azure SSO Integration: Classic WebApp

Microsoft Azure SSO Integration: Classic WebApp

Microsoft Azure SSO Integration

2024-05-14

Version 2.0


Description

This guide is for configuring the integration of Microsoft Azure with an Eagle Eye VMS account.

There are a few prerequisites before the account can utilize the feature:
  1. The Eagle Eye VMS account must be Professional Edition to utilize this feature.
  2. The Reseller account must have branding enabled for SSO to function properly.
  3. A Microsoft Azure account is required.

Settings

Creating a New Application

      1.  Log in to the Azure portal.
      2. Select the Azure Active Directory Service .

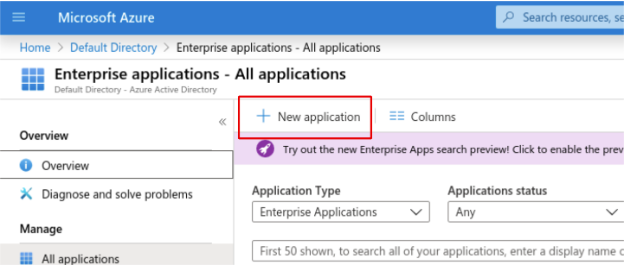

      3.  Select Enterprise applications from the menu.
     4. Click New Application.



      5.  Select Non-gallery application.

      6.  Provide the application's name and click add.

      7.  Select Set up single sign-on .

      8.  Choose SAML as the SSO method.

Application SSO settings: Fill in the specified value for each field

      1.  Basic SAML Configuration.

Name

Value

Identifier (Entity ID)

eagleeyenetworks.com

Reply URL

https://<branded_subdomain>.eagleeyenetworks.com/g/aaa/sso/SAML2/Authenticate

Info<branded_subdomain> is what you choose

      2.  User attributes & Claims section.

                  Required claim

Claim name

Claim value

Unique User Identifier (Name ID)

user.mail [nameid-format:emailAddress]


                  Additional claims
Alert
   Required for VMS integration.

Claim name

Claim value

firstName

user.givenname

lastName

user.surname



      3.  SAML Signing Certificate Fields.

Name

Value

Signing Option

Sign SAML assertion

Signing Algorithm

SHA-1

      4.  Set up <application>.

Info
This section holds the data needed for VMS account configuration

VMS Account Settings

Info
The master account Identity provider settings (sub-account settings are parallel).

1.  Single Sign-ON URL

Copy  Login UR L from Azure's  Set Up <application>  section and paste into Single Sign-On URL .

2.  Issuer

Copy Azure AD Identifier from Azure’s Set Up <application> section and paste into Issuer.

3.  Certificate

Copy downloaded certificate from the  SAML Signing Certificate section.

Notes
End-User-Account SSO

To login, the user will go to https://myapplications.microsoft.com/ and select the tile: Eagle Eye Networks SSO.


Info


For support please email: support@een.com

or give us a call at: 512-473-0501
