Masking Out Motion Regions
Masking Out Motion Regions
2024-05-09
Version 2.0
Motion Regions allow Users to be notified when motion events occur in areas of interest. Alternatively, they can prevent a camera from recognizing motion in areas of constant movement such as a street, television screen or foliage in the breeze.
This guide will show you how to set up both types of Motion Regions and how to configure alerts as well.

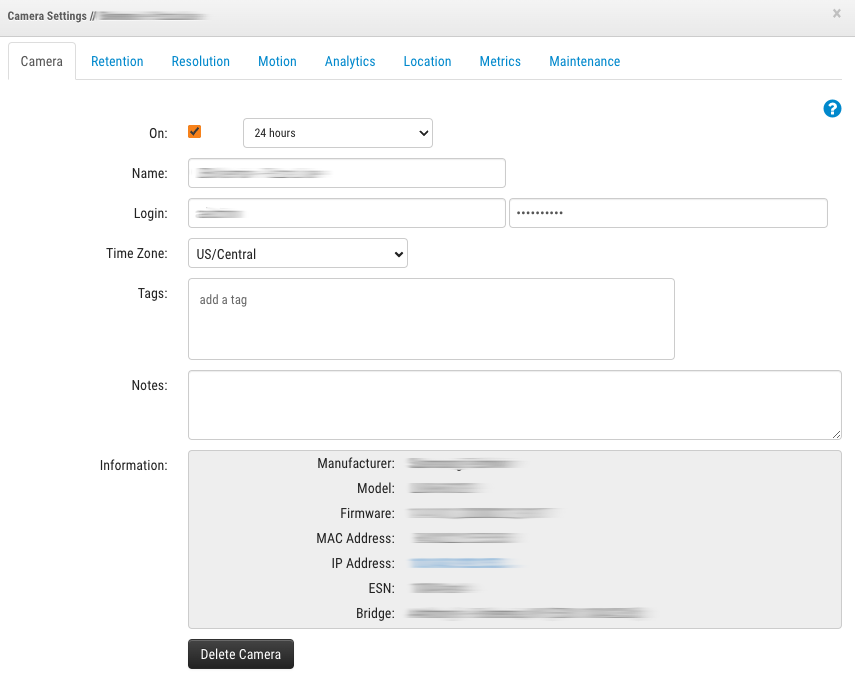

1. Click the Settings icon for a camera.

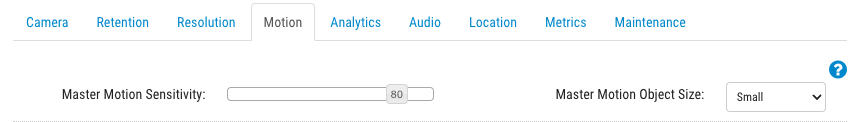

2. Select Motion.

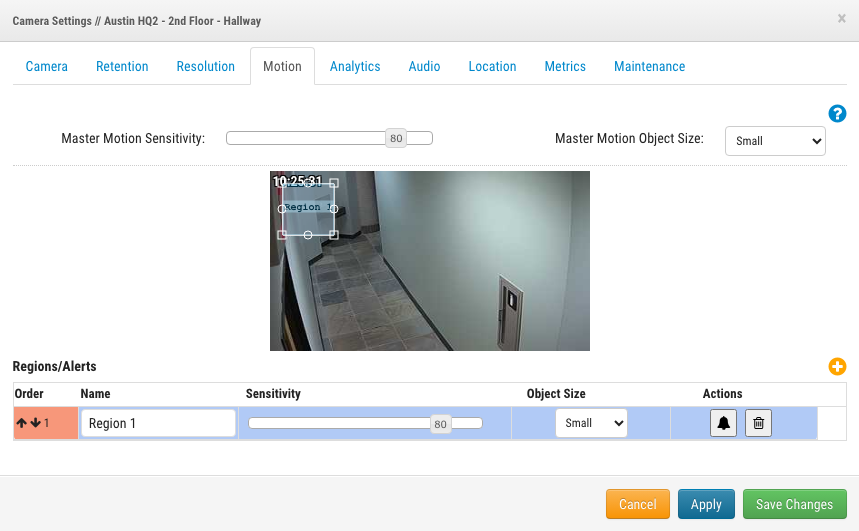

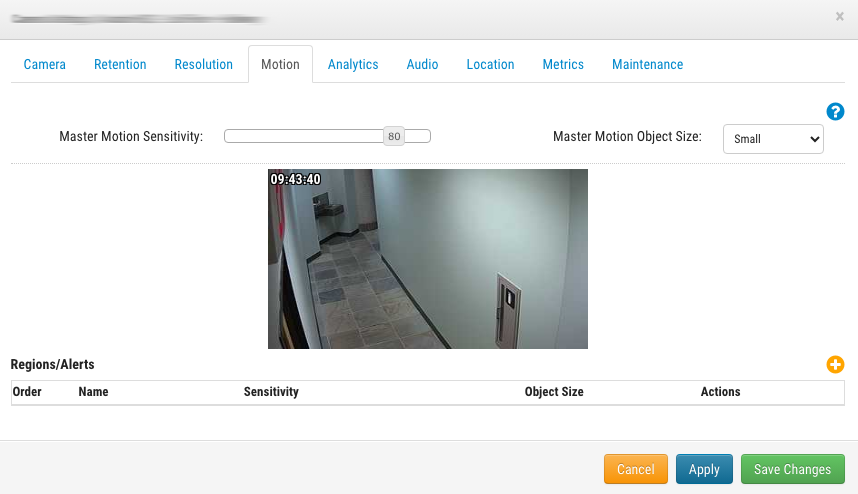

3. Click the Yellow Plus to create a Motion Region.
4. Define the area of the Motion Region by clicking and dragging the icons on the edges of the shape.

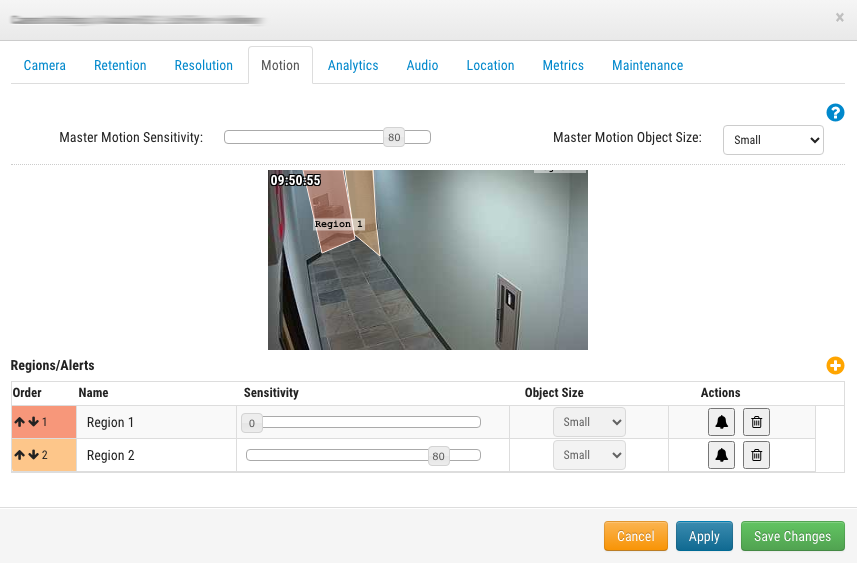

5. Adjust the Sensitivity of the Region.
With 0 Sensitivity, the camera will not record based on motion in the area.
Other Sensitivity settings define how sensitive the camera is to motion for that region.
Object Size indicates how large the object is in the frame of reference for the camera. Click the Blue Question Mark icon for an in-depth explanation.
6. Click Apply.
7. Click Save Changes.
Creating Alerts is necessary if you want to be notified of motion events for your cameras. After setting up the Motion Region, you can set up notifications for it.
Click the Settings icon for a camera.
Select Motion.
Click the Notification icon for the Motion Region you want notificatio.
Configure the Alert settings.
Select Enable Alerts.
Configure When and Re-arm based on need.
Select Who needs to receive notifications.
Mode only applies if you create a custom notification group.
Level will denote the type of alert. This ties directly to the notification groups referenced in My Profile.
Click Apply.
Click Save Changes.
In order for a user to receive motion alerts, alerts must be enabled in My Profile.
Click Your Name.
Select My Profile.
Click Notifications.
Select the types of Alerts you want notifications for.
Select the Method of Delivery (Email/ Push).
Save Changes.
With 0 Sensitivity, the camera will not record based on motion in the area.
Other Sensitivity settings define how sensitive the camera is to motion for that region.
Object Size indicates how large the object is in the frame of reference for the camera. Click the Blue Question Mark icon for an in-depth explanation.
Click the Settings icon for a camera.
Select Motion.
Click the Notification icon for the Motion Region you want notificatio.
Configure the Alert settings.
Select Enable Alerts.
Configure When and Re-arm based on need.
Select Who needs to receive notifications.
Mode only applies if you create a custom notification group.
Level will denote the type of alert. This ties directly to the notification groups referenced in My Profile.
Click Apply.
Click Save Changes.
Click Your Name.
Select My Profile.
Click Notifications.
Select the types of Alerts you want notifications for.
Select the Method of Delivery (Email/ Push).
Save Changes.
