Eagle Eye VMS Camera Direct

Eagle Eye VMS Camera Direct

2024-05-21

Version 2.0

Description

This guide describes how to add Camera Direct cameras to the Eagle Eye Cloud VMS.

With Eagle Eye VMS Camera Direct, you can easily integrate your cameras with the Eagle Eye Cloud VMS without the need for a Bridge or CMVR. Connect your camera to the internet and add it to the Eagle Eye Cloud VMS using its MAC address. Once added, your cameras are immediately ready for viewing within the Cloud VMS.

Supported Cameras

The following cameras are currently supported with Eagle Eye Camera Direct Complete:

Camera	SKU	Description
	EN-CDUB-010a	Eagle Eye Camera DB10 Outdoor Bullet 4 MP (MegaPixel), H265, IR, IP66, 2.8mm, WDR, PoE
	EN-CDUB-011	Eagle Eye Camera DB11 Outdoor Mini Bullet 4 MP, H265, IR, IP66, 2.7-13.5 Lens, WDR, PoE
	EN-CDUM-008a	Eagle Eye Camera DM08 Outdoor Mini Dome 4 MP, H265, IR, IP66, 3.6mm Lens, Microphone, PoE
	EN-CDUD-007a	Eagle Eye Camera DD07 Outdoor Vandal Dome 4 MP, H265, IR, IP67, IK10, DarkSight, 2.8mm Lens, PoE
	EN-CDUD-008a  EN-CDUD-009a	Eagle Eye Camera DD08 Outdoor Vandal Dome 4 MP, H265, IR, IP66, IK10, DarkSight, 2.7mm-13.5m Moto Lens, PoE  Eagle Eye Camera DD09 Outdoor Vandal Dome 4 MP, No Pigtail, H265, IR, IP67, IK10, 2.7mm-13.5m Moto Lens, PoE
	EN-CDUT-001a	Eagle Eye Camera DT01 Outdoor Turret 4 MP, H265, IR, IP66, 2.8mm Lens, PoE

Adding a Camera Direct Camera

Prerequisites

In order to set up your Eagle Eye Camera Direct, you need the following:

1. An Eagle Eye Cloud VMS account.

2. A camera model that is supported by Camera Direct.

1. Note: Make sure the camera is in factory default settings, and runs the latest firmware for its model.
3. The MAC address of the Camera Direct camera.


Step-by-Step

1. Log in to your Eagle Eye Networks Cloud VMS account.
2. Select Dashboard.

3. Click the Ellipsis icon.

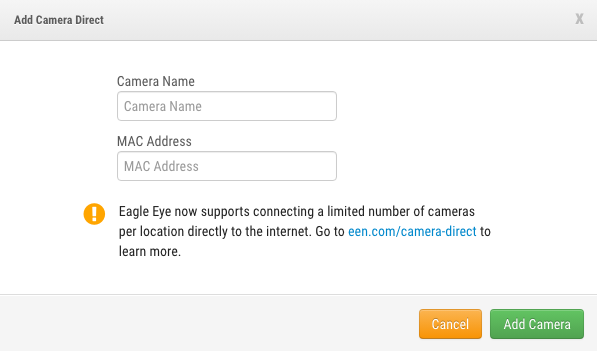

4. Select Add Camera Direct from the drop-down.

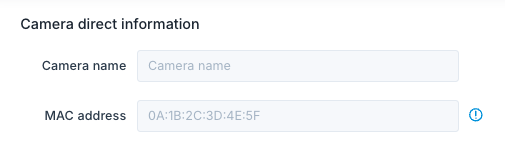

5. Fill out the fields.

1. The Camera Name is based on your specifications.

2. The MAC Address can be found on the device and in the packaging.


The Camera Direct Camera is added to your Eagle Eye Cloud VMS account.

The camera will take a couple minutes to connect to the Cloud.

Using the Live View and History Browser with Camera Direct cameras in the Eagle Eye Cloud VMS works the same way as it does with any other cameras. If you need assistance refer to our knowledge base article here.

Upcoming Features

Eagle Eye Networks is currently working to add the following features to Camera Direct camera compatibility.

1. VPN to cameras

2. Analytics (other than motion)

3. Camera I/O support

4. 2-Way Audio support

5. License Plate Recognition (LPR) support


For support please email: support@een.com

or give us a call at: 512-473-0501
