2N Axis Camera Configuration Guide


2024-05-20

Version 2.0


Description


This guide will show you how to properly configure 2N Axis cameras to integrate properly with you Eagle Eye system.

Models currently supported by Eagle Eye Networks:

  • 2N Axis Base

  • 2N Axis Solo

  • 2N Axis Style

  • 2N Axis Verso


Minimum Firmware required: 2.38.0.50.3


2N IP Axis doorbell cameras cannot be reached via cloud tunnels (Satellite VPN Icon). All tunnels to these cameras must be established locally.

Configuration


  1. ONVIF is enabled and ONVIF credentials made as Administrator.

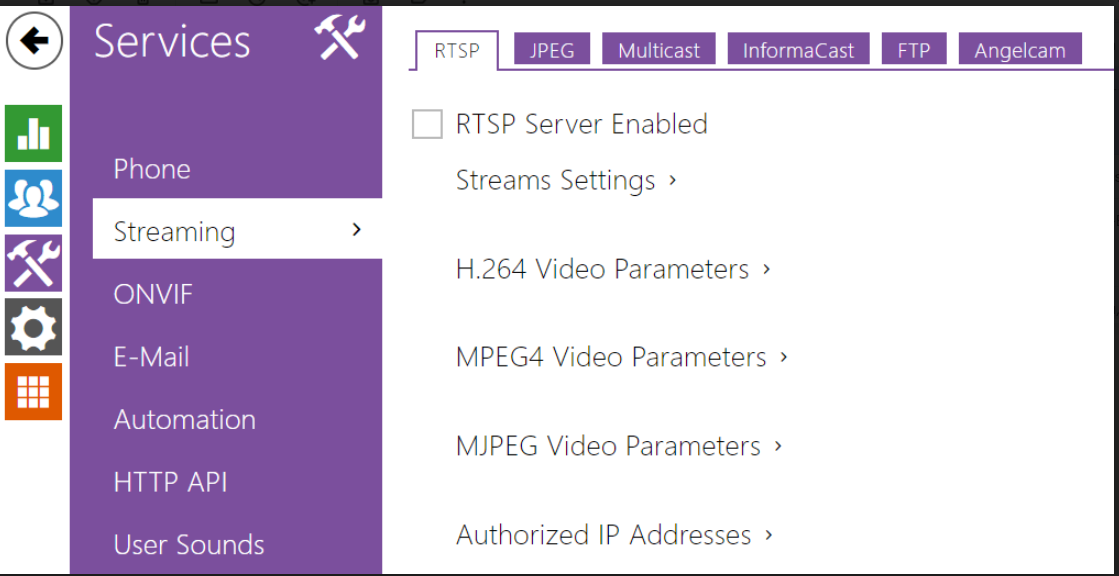

  2. RTSP Server Enabled.
  3. H.264 video encoding is set to 15 fps and HD1 (720) or HD2 (1080) resolution.
  4. MJPEG video encoding is set no higher than 6 fps and CIF resolution.


The camera will then populate in the Available Cameras section of the dashboard.



  1. Click the green plus icon and fill out the Camera’s Username and Password with the information you created for the ONVIF profile.
  2. Adjust the Resolution and Retention settings as needed.
  3. Click Save.
    The camera will then be attached to the account and should come online within a few minutes.


For support please email: support@een.com

or give us a call at: 512-473-0501
