Local Display on the Eagle Eye Networks Cloud VMS

Local Display on the Eagle Eye Networks Cloud VMS

Local Display on the Eagle Eye Networks Cloud VMS

2024-05-22

Version 2.0


Description

This article details how to display cameras/layouts on a local monitor or to a browser over the local network.

Step-by-Step


Local Display via Monitor

      1. Connect a monitor to the Bridge via the HDMI or display port.
Alert
Eagle Eye does not support cables over 10 feet or any third-party HDMI extenders/converters.
      2. Click the Settings icon   next to the Eagle Eye Bridge.
      3. Click Local Display.

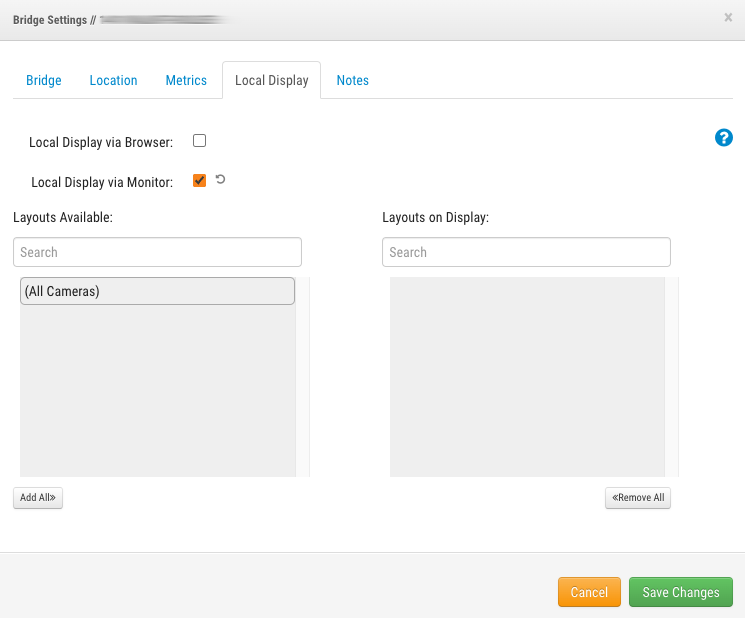

      4. Select Local Display via Monitor.

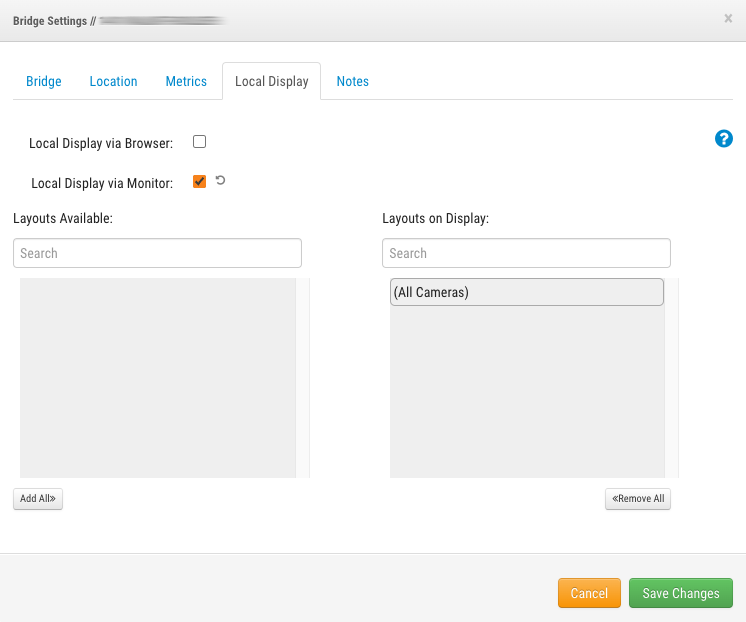

      5.  Drag a layout from "Layouts Available" to "Layouts on Display".
      6. Click Save Changes.

The selected layout will now display on the monitor.

Info

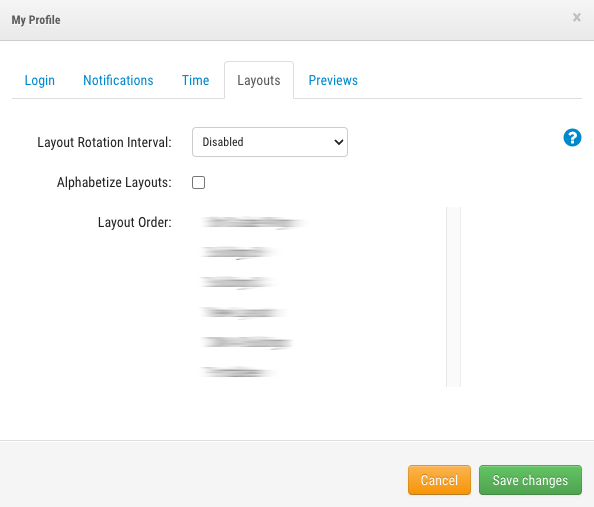

When enabling this function you can utilize multiple layouts to cycle at a specified interval by adjusting the settings under My Profile.


Local Display via Browser

Local Display via Browser streams a layout to a computer on the same network as the Eagle Eye Bridge via the IP address.
Alert
Use Media Shortcut to properly utilize Display via Browser.
      1. Click Bridge Settings.

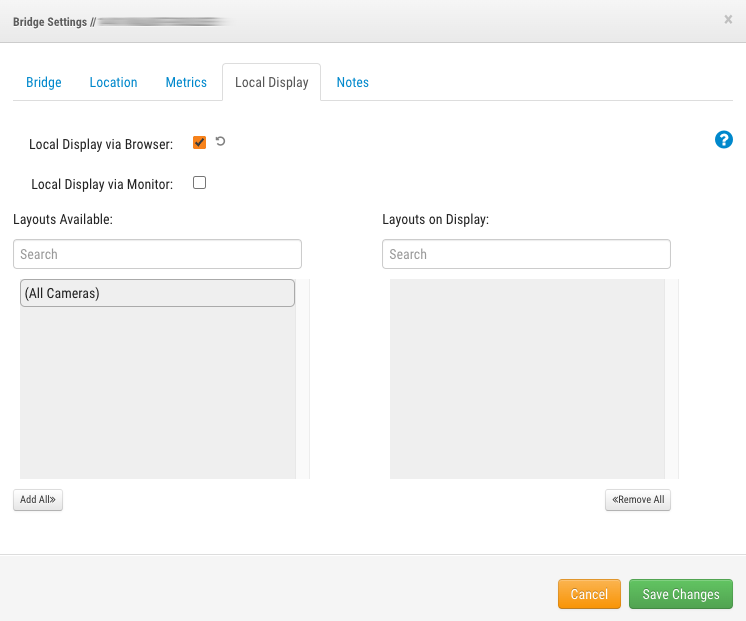

      2. Select Local Display via Browser.


      3.  Drag a layout from "Layouts Available" to "Layouts on Display".


      4. Click Save Changes.
      5. Type the IP of the bridge into the browser of a computer on the same network and a login prompt will appear.
      6. Log in with your Eagle Eye credentials.
Alert
The login credentials must be a user on the SubAccount. Resellers credentials will not work.

The selected layout will now display in the browser.


Info


For support please email: support@een.com

or give us a call at: 512-473-0501
