Hikvision Camera Configuration
Hikvision Camera Configuration
2024-11-12
Version 2.3
To integrate a Hikvision camera there are a few settings that need adjustment. Please follow the steps below to configure the device so that it integrates properly with the Eagle Eye Networks system.

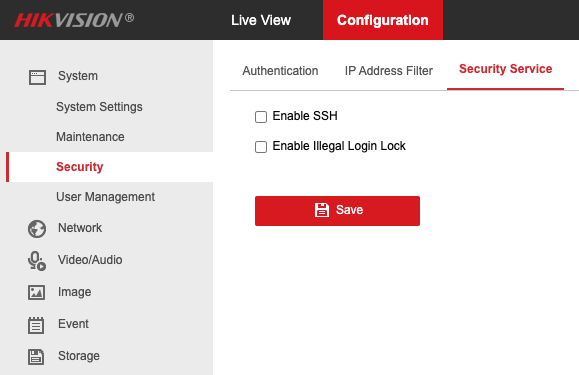

Log in to the Hikvision Camera.
Select System>Security.
Select Security Service.
Deselect Enable Login Lock.
Click Save.
Log in to the Hikvision Camera.
Select System>Security.
Select Security Service.
Deselect Enable Login Lock.
Click Save.

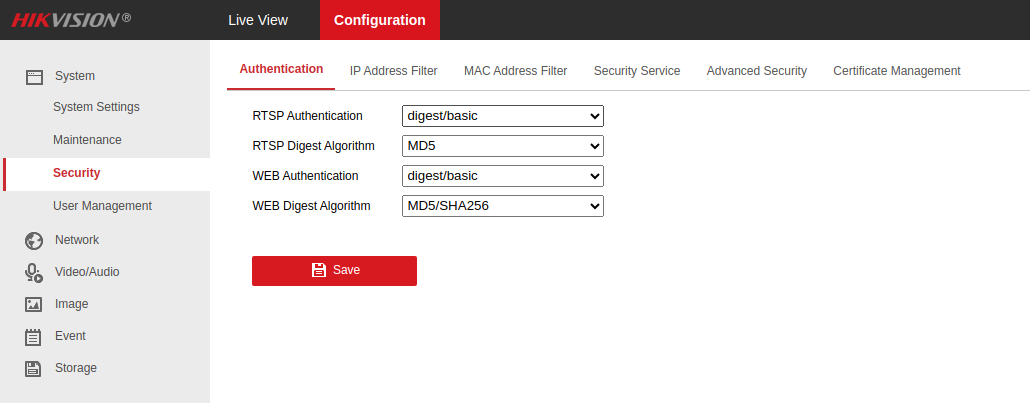

Log in to the Hikvision Camera.
Select System>Security.
Select Authentication.
From the RTSP Authentication dropdown select digest/basic.
From the RTSP Digest Algorithm dropdown select MD5.

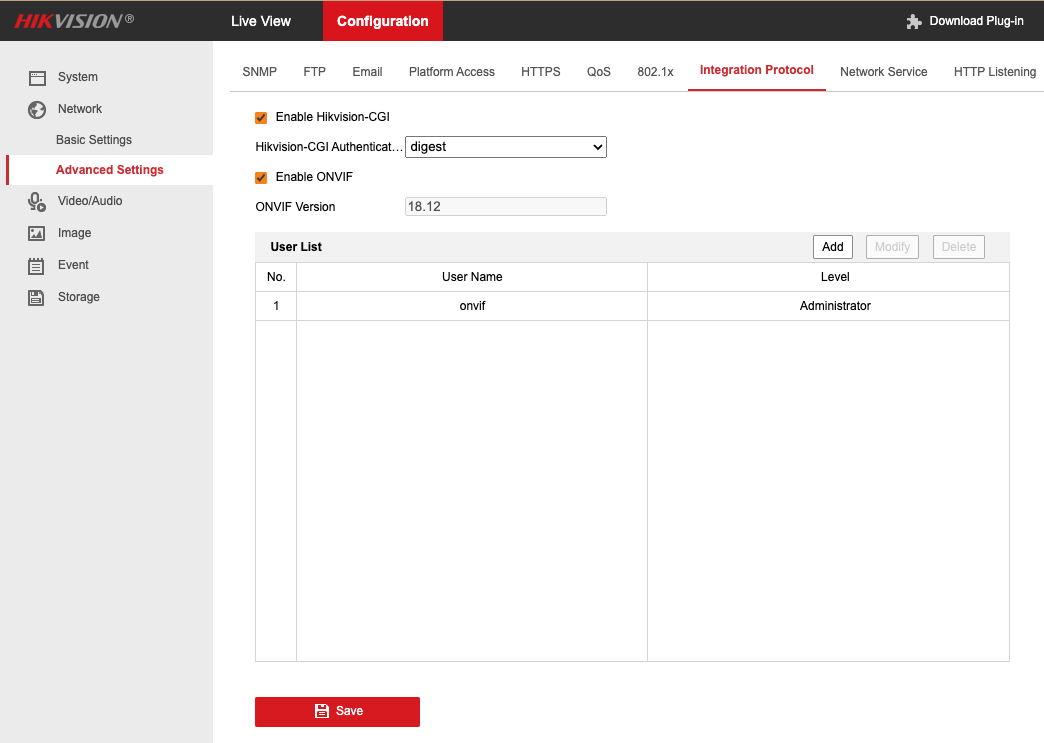

Log in to the Hikvision Camera.
Select Network>Advanced Settings.
Select Integration Protocol.
Select Enable Hikvision-CGI.
From the Hikvision-CGI Authentication drop-down select Digest.
If Digest&WS-UsernameToken is available, use this instead.
Select Enable ONVIF.
Add a User, with the same login information as the camera, at Administrator level.
Click Save.

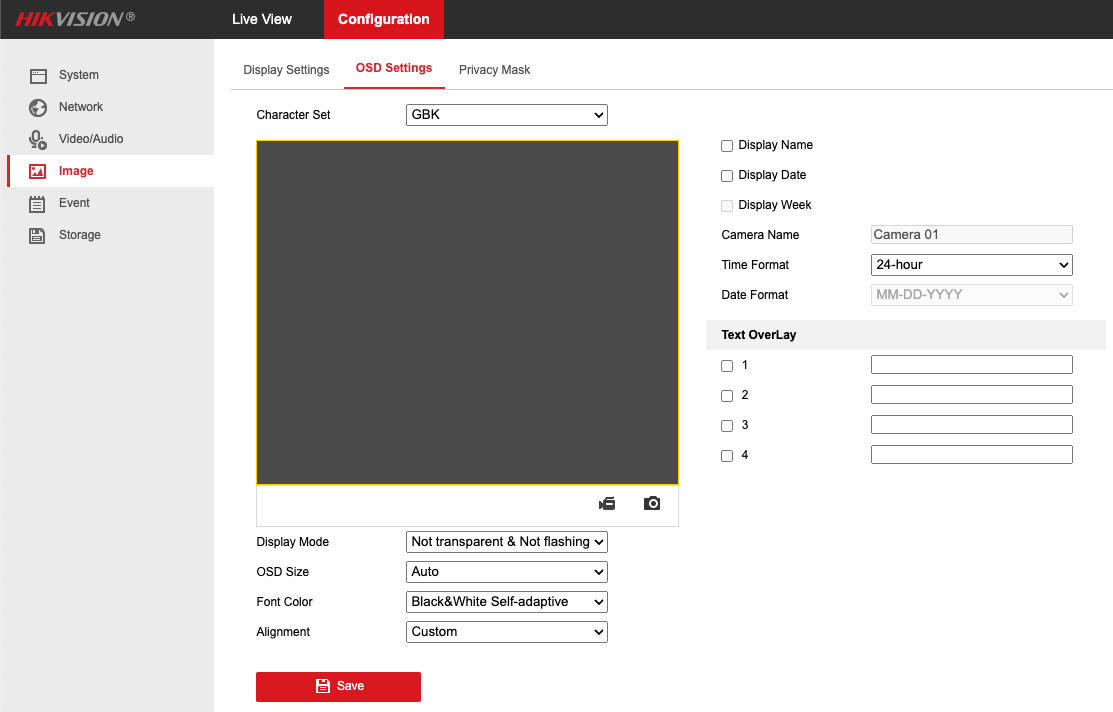

Log in to the Hikvision Camera.
Select Image>OSD Settings.
Deselect Display Date.
Click Save.
The OSD can cause motion events in the Eagle Eye system triggering recording.

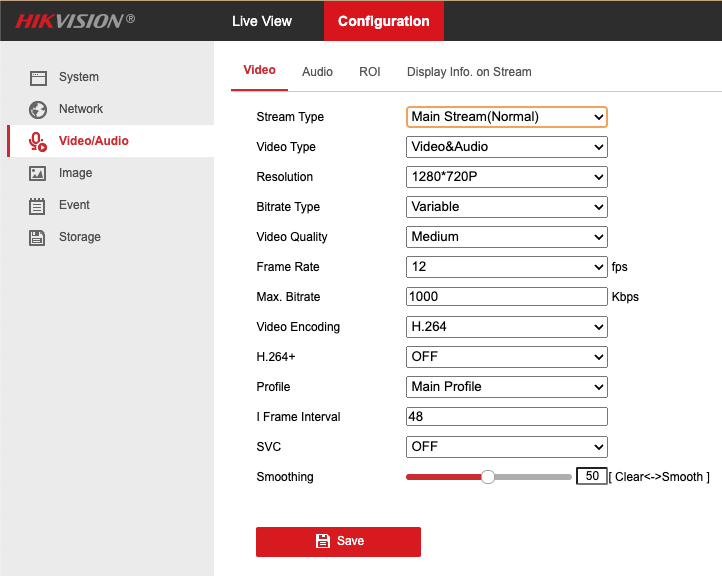

Main Stream
Select Video/Audio>Video.
From the Stream Type drop-down select Main Steam(Normal).
Select the preferred Resolution.
Select 12fps for the Frame Rate.
Select H.264 for Video Encoding.
Eagle Eye Networks only supports native H.264.
Click Save.

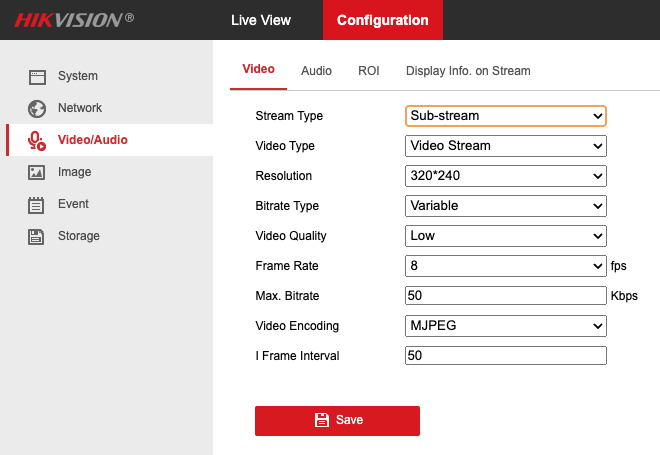

Sub-Stream
Select Video/Audio>Video.
From the Stream Type drop-down select Sub-stream.
Select the preferred Resolution.
Select 8fps for the Frame Rate.
Select MJPEG for Video Encoding.
Select Save.

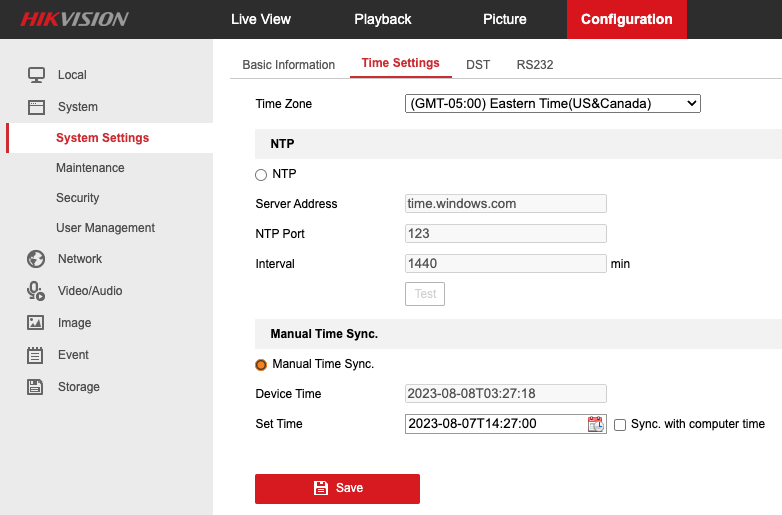

Select System>System Settings.
Select Time Settings.
Ensure the Time is correct.
Some cameras will have the wrong date and that prevents the Eagle Eye system from connecting to it properly.
4. Click Save.
If there are any issues selecting the Time Zone attempt to Sync with computer time.
Log in to the Hikvision Camera.
Select System>Security.
Select Authentication.
From the RTSP Authentication dropdown select digest/basic.
From the RTSP Digest Algorithm dropdown select MD5.
Log in to the Hikvision Camera.
Select Network>Advanced Settings.
Select Integration Protocol.
Select Enable Hikvision-CGI.
From the Hikvision-CGI Authentication drop-down select Digest.
If Digest&WS-UsernameToken is available, use this instead.
Select Enable ONVIF.
Add a User, with the same login information as the camera, at Administrator level.
Click Save.
Log in to the Hikvision Camera.
Select Image>OSD Settings.
Deselect Display Date.
Click Save.
Select Video/Audio>Video.
From the Stream Type drop-down select Main Steam(Normal).
Select the preferred Resolution.
Select 12fps for the Frame Rate.
Select H.264 for Video Encoding.
Eagle Eye Networks only supports native H.264.
Click Save.
Select Video/Audio>Video.
From the Stream Type drop-down select Sub-stream.
Select the preferred Resolution.
Select 8fps for the Frame Rate.
Select MJPEG for Video Encoding.
Select Save.
Select System>System Settings.
Select Time Settings.
Ensure the Time is correct.
Some cameras will have the wrong date and that prevents the Eagle Eye system from connecting to it properly.
For support please email: support@een.com
or give us a call at: 512-473-0501
US: +1-512-473-0501
EU: 31 (0) 20 26 10 461
ASIA PACIFIC: +81-(3)-6869-5477
